  • View 380 XL TG ARGB Snow Mid Tower Chassis
View 380 XL TG ARGB Snow Mid Tower Chassis View 380 XL TG ARGB Snow Mid Tower Chassis View 380 XL TG ARGB Snow Mid Tower Chassis View 380 XL TG ARGB Snow Mid Tower Chassis View 380 XL TG ARGB Snow Mid Tower Chassis View 380 XL TG ARGB Snow Mid Tower Chassis
View 380 XL TG ARGB Snow Mid Tower Chassis

View 380 XL TG ARGB Snow Mid Tower Chassis

In stock
P/N
CA-11E-00M6WN-00
150,90 € (included VAT)
The View 380 XL TG ARGB Snow Mid Tower Chassis is a dual-chamber ATX case with Hidden-Connector Motherboard support, four 120mm Hydraulic Bearing ARGB Lite fans, and space for a 360mm radiator at both the top and motherboard side.

  • The image is for reference only.
    •

  • The image is for reference only.
    •

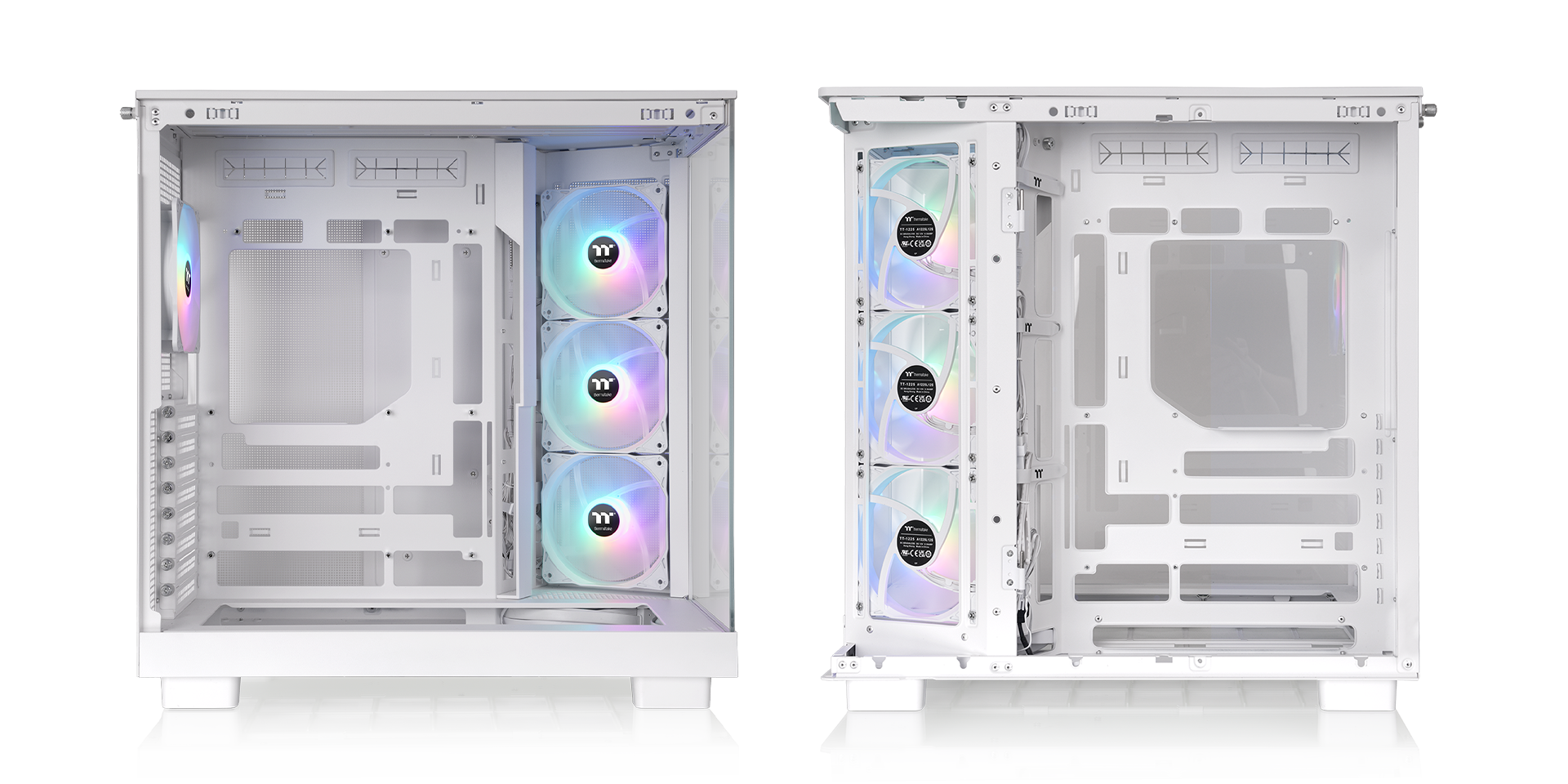

Dual Chamber Design
The dual-chamber design provides more build space, improved cable management and increased airflow for greater flexibility.

  • The image is for reference only.
    •

  •

  • The image is for reference only.
    •
Flexibility to Build Your Ideal PC

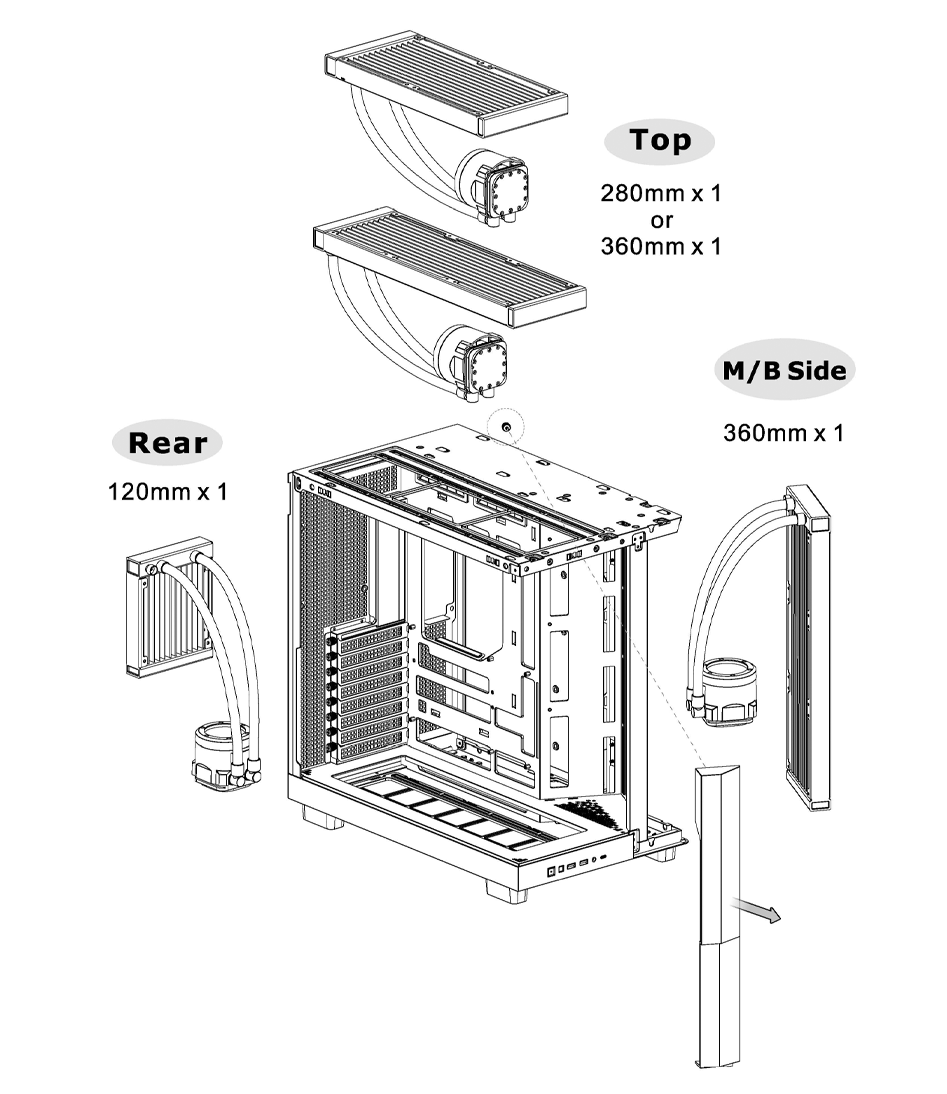

The View 380 XL TG ARGB Snow Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 420mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with four Hydraulic Bearing 120mm ARGB Lite Fans, and up to ten 120mm fans can be installed. For radiator compatibility, it can support up to a 360mm radiator at the top or the motherboard side, giving more options for high-end expansion!
  • 120mm
  • 140mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm
  • 360mm

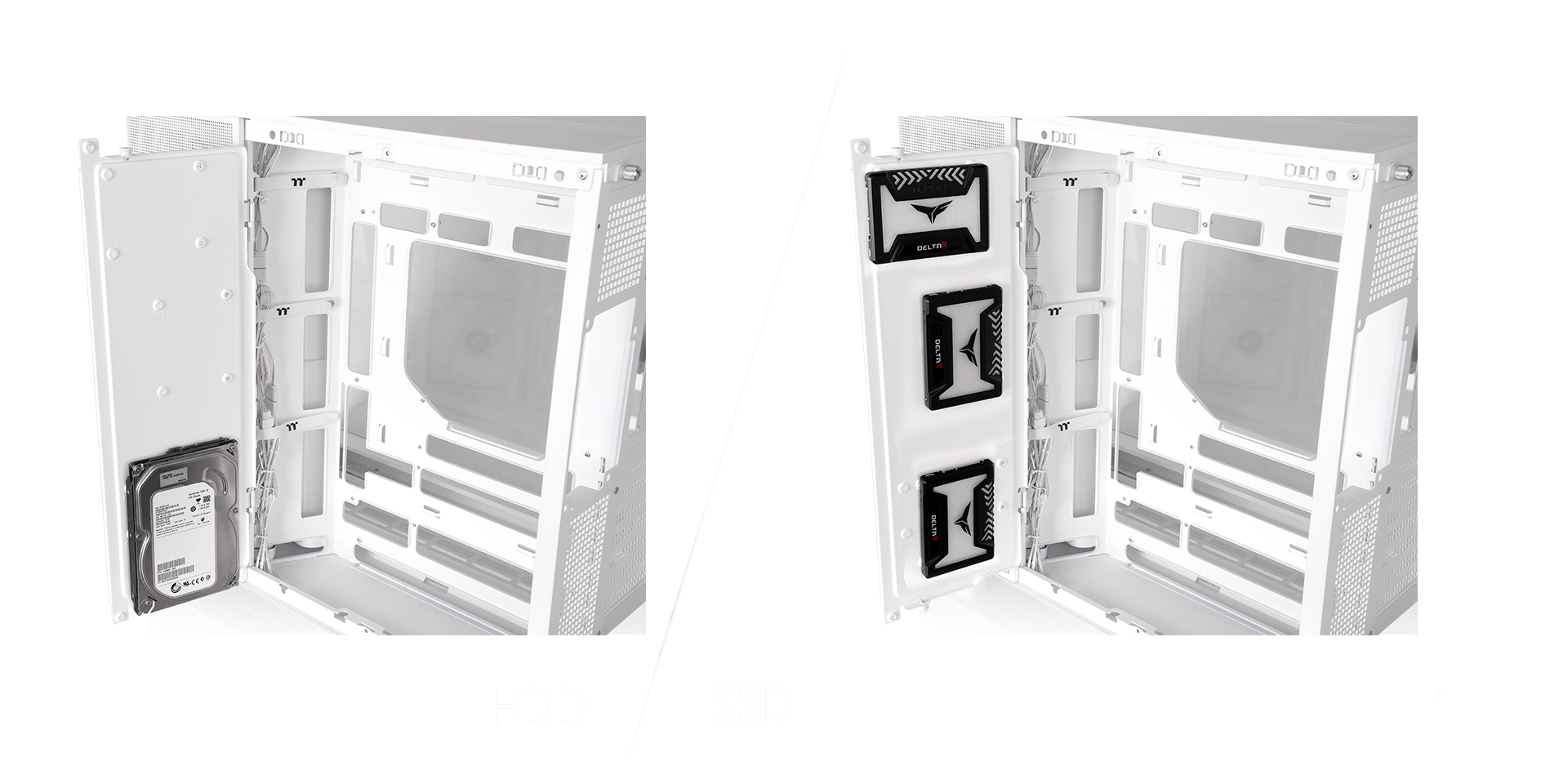

Storage Support
For storage compatibility, the View 380 XL TG ARGB Snow Mid Tower Chassis gives maximum support of up to three 2.5‘’ SSDs or one 3.5‘’ HDD in total.






OSZAR »

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
More Information
P/N CA-11E-00M6WN-00
Séries View
Model View 380 XL TG ARGB
DIMENSIONS (H x L x P) 471 x 288 x 469 mm
(18.54 x 11.34 x 18.46 inch)
PANNEAU LATÉRAL 4mm Tempered Glass x 2
COULEUR Snow
MATÉRIEL SPCC
SYSTÈME DE REFROIDISSEMENT Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
BAIES DE LECTEUR 1 x 3.5”, 2 x 2.5” or 3 x 2.5”
FENTES D'EXTENSION 8
CARTES MÈRES 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
PORT E/S USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
Bloc Alimentation Standard PS2 PSU (optional)
SOUTIEN DES VENTILATEURS Top:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm

Right:
3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
SUPPORT RADIATEUR Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm
AUTORISATION CPU cooler max height: 160mm
VGA max length: 420mm
PSU max length: 180mm
